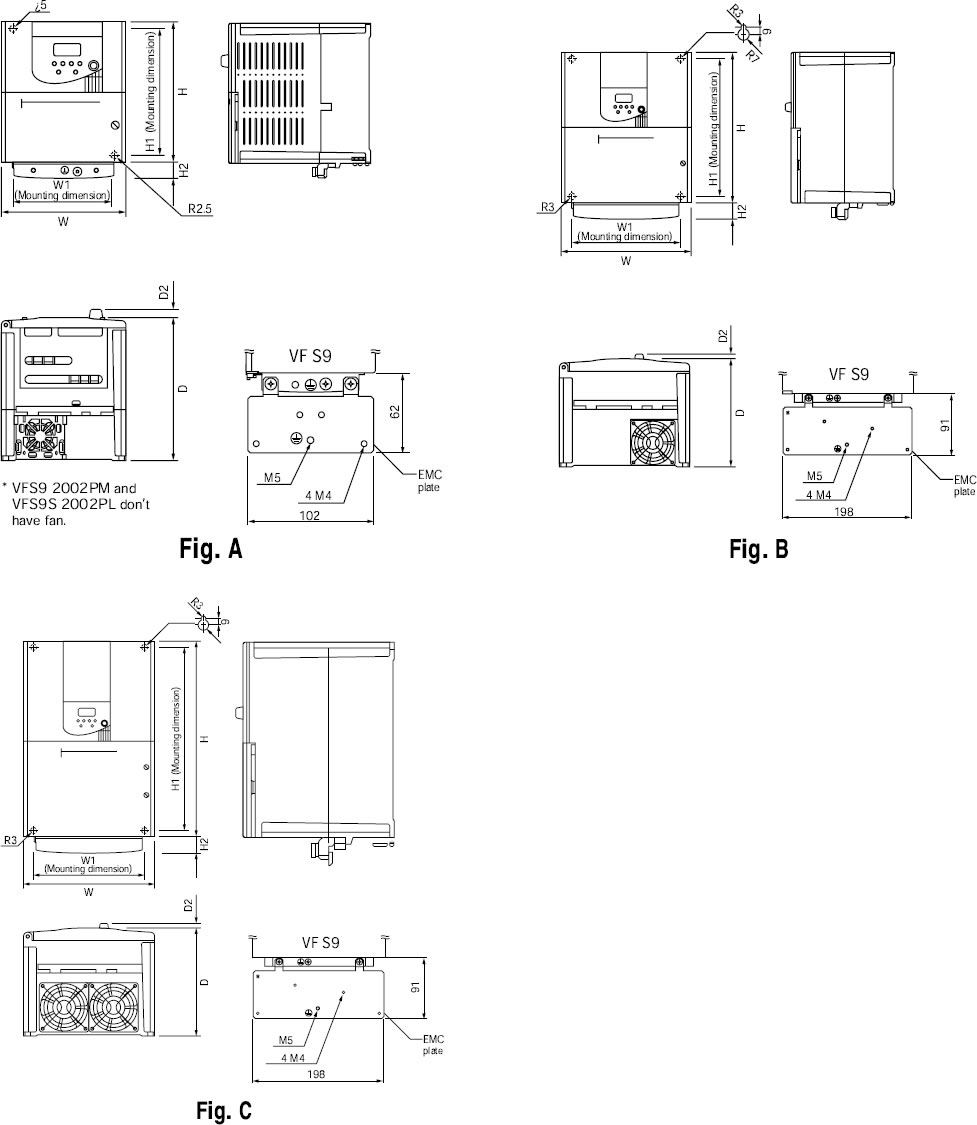

| Napięcie wejściowe | Silnik (kW) | Typ | Wymiary (mm) | Rys. | Waga (kg) | ||||||
| W | H | D | W1 | H1 | H2 | D2 | |||||
| 1-faz. 200V | 0.2 | VFS9S-2002PL | 105 | 130 | 140 | 93 | 118 | 14 | 8.5 | A | 1.9 |
| 0.4 | VFS9S-2004PL | 1.9 | |||||||||
| 0.75 | VFS9S-2007PL | 1.9 | |||||||||
| 1.5 | VFS9S-2015PL | 130 | 150 | 150 | 118 | 138 | 2.9 | ||||
| 2.2 | VFS9S-2022PL | 140 | 195 | 163 | 126 | 182 | 4.5 | ||||
| 3-faz. 200V | 0.2 | VFS9-2002PM | 105 | 130 | 130 | 93 | 118 | 14 | 8.5 | A | 1.8 |
| 0.4 | VFS9-2004PM | 1.8 | |||||||||
| 0.75 | VFS9-2007PM | 1.8 | |||||||||
| 1.5 | VFS9-2015PM | 150 | 138 | 2.0 | |||||||
| 2.2 | VFS9-2022PM | 140 | 195 | 147 | 126 | 182 | 4.0 | ||||
| 3.7 | VFS9-2037PM | 4.0 | |||||||||
| 5.5 | VFS9-2055PL | 200 | 270 | 170 | 180 | 255 | 12 | B | 9.2 | ||
| 7.5 | VFS9-2075PL | 9.2 | |||||||||
| 11 | VFS9-2110PM | 245 | 330 | 195 | 225 | 315 | C | 15.8 | |||
| 15 | VFS9-2150PM | 15.8 | |||||||||
| 3-faz. 400V | 0.75 | VFS9-4007PL | 130 | 150 | 150 | 118 | 138 | 14 | 8.5 | A | 2.9 |
| 1.5 | VFS9-4015PL | 2.9 | |||||||||
| 2.2 | VFS9-4022PL | 140 | 195 | 163 | 126 | 182 | 4.5 | ||||
| 3.7 | VFS9-4037PL | 4.5 | |||||||||
| 5.5 | VFS9-4055PL | 200 | 270 | 170 | 180 | 255 | 12 | B | 9.2 | ||
| 7.5 | VFS9-4075PL | 9.2 | |||||||||
| 11 | VFS9-4110PL | 245 | 330 | 195 | 225 | 315 | C | 15.8 | |||
| 15 | VFS9-4150PL | 15.8 | |||||||||
